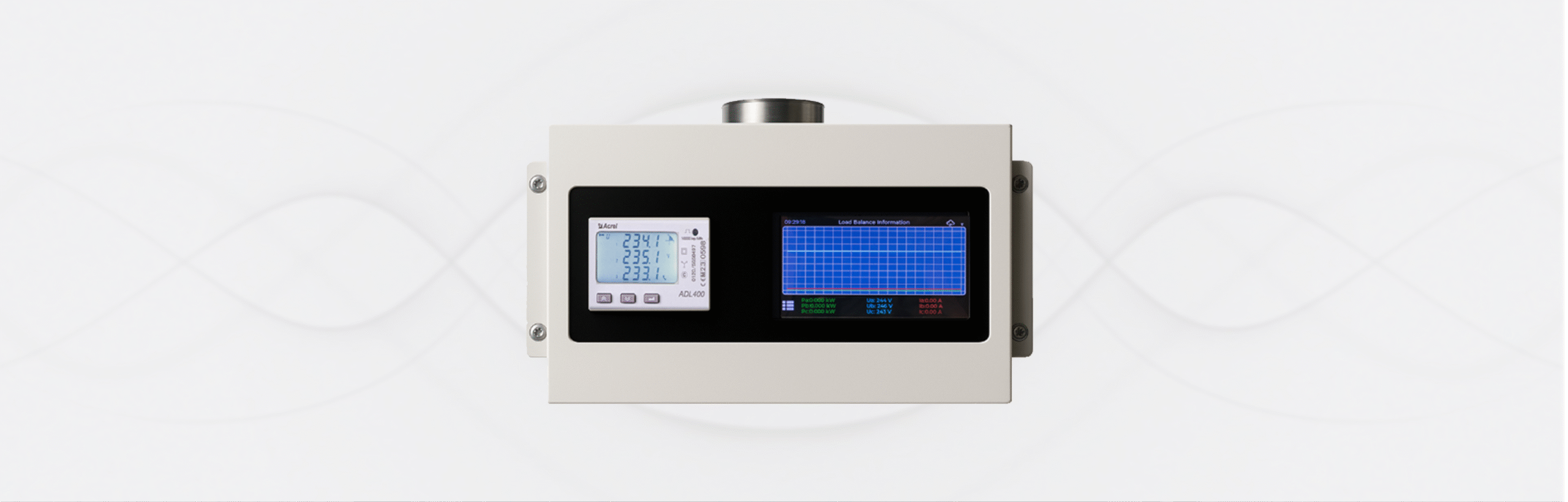

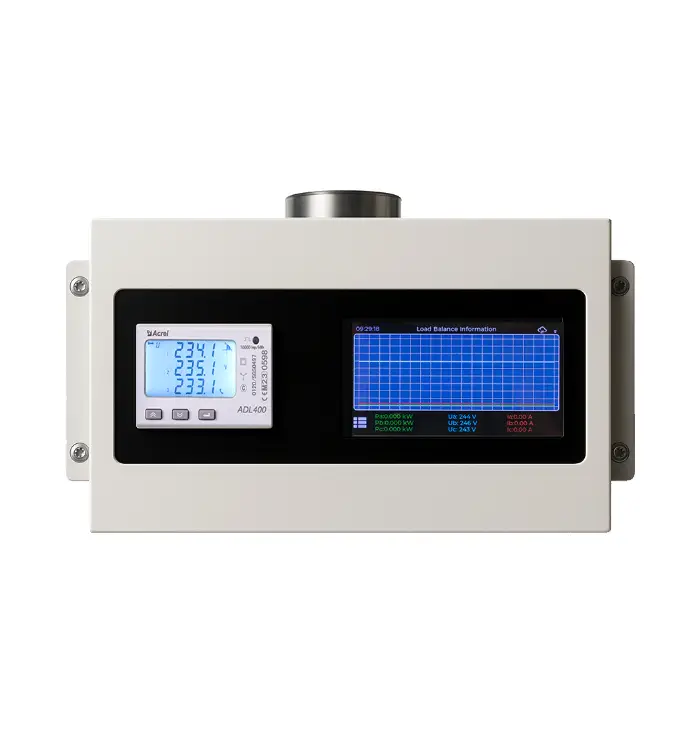

Libra Load Balancer – Dynamic Control, Maximum Efficiency
Precise, scalable, and perfect for multi-charger setups

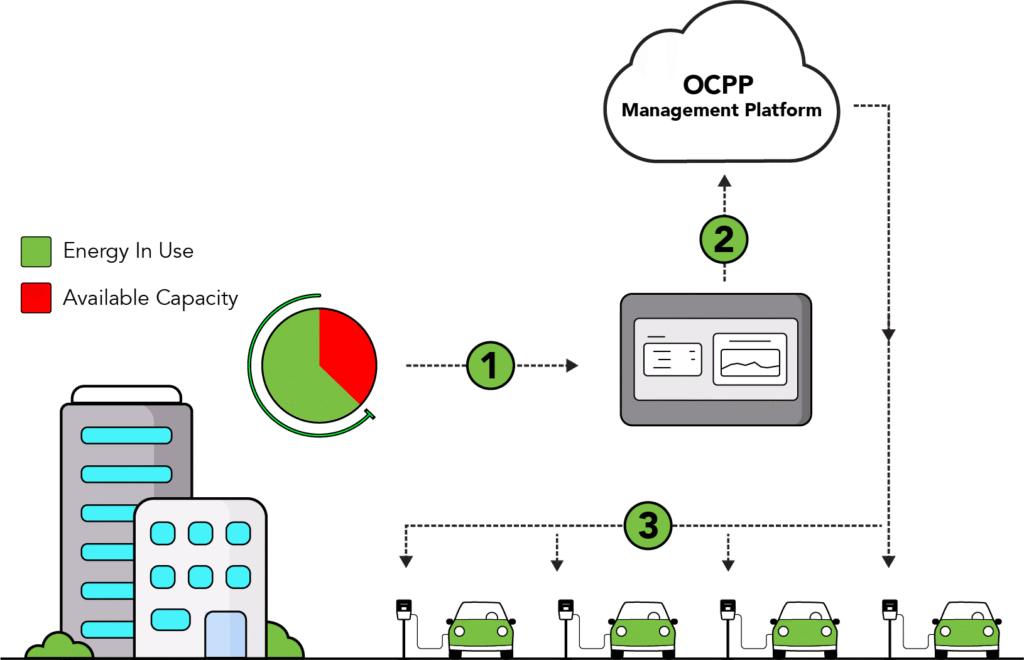

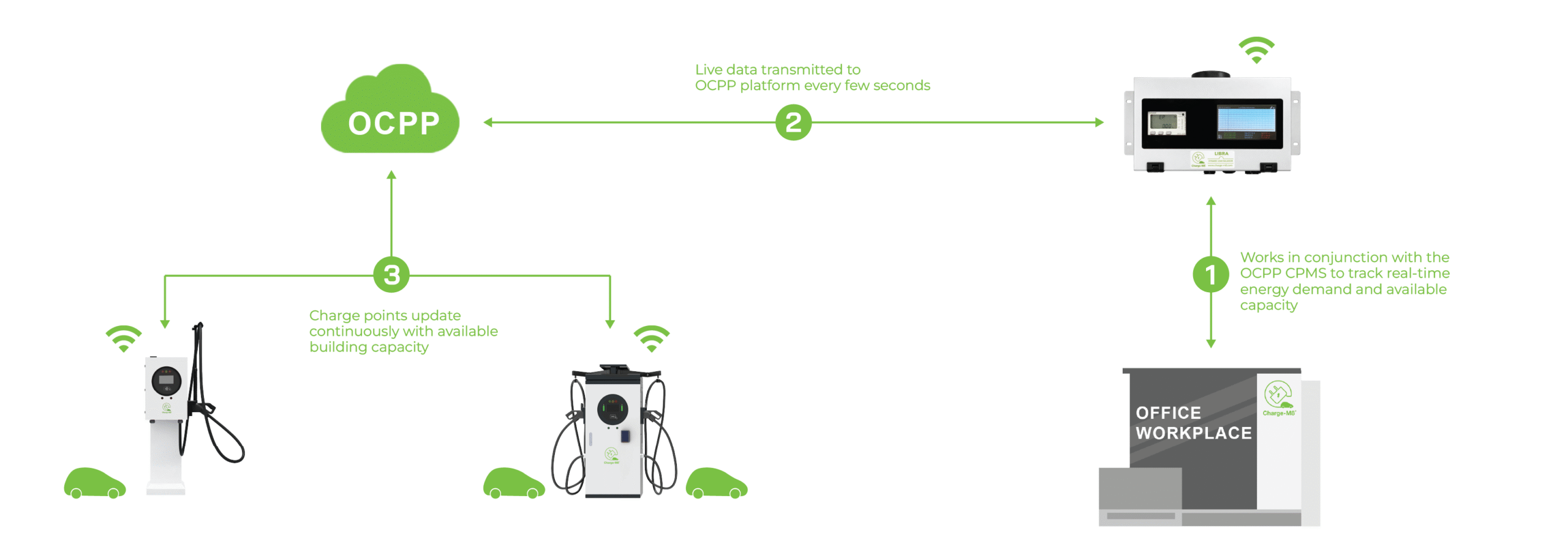

How does it work?
It’s full of clever tech — but getting your head around it doesn’t need a degree. Tap the numbers to see how it all works.

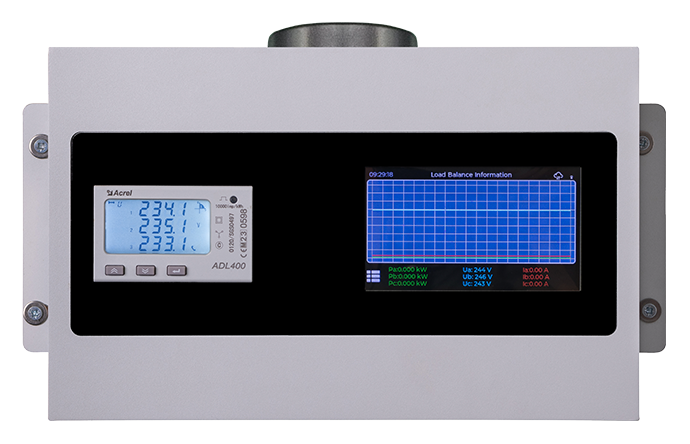

The Libra Dynamic Load Balancer is an advanced solution for intelligent power management.
Libra is designed to monitor a building’s power usage in real time, continuously assessing available capacity across the site.
It communicates with the cloud to intelligently adjust power allocation to connected chargers, ensuring optimal energy use while preventing overload — all without the need for costly grid upgrades.

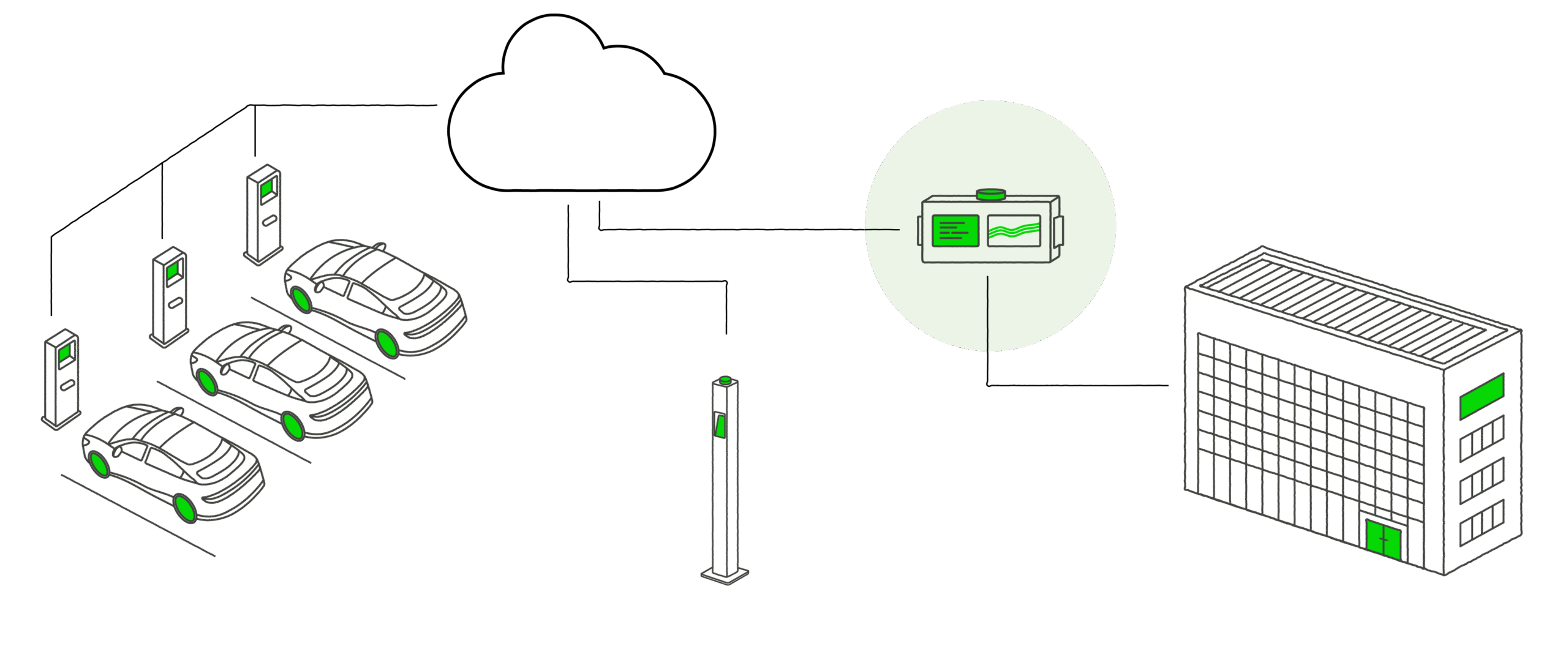

Whether it’s a commercial car park, workplace, or residential development, Libra enables the installation of more EV chargers without exceeding existing supply limits. With its plug-and-play design and seamless system integration, Libra delivers reliable, efficient, and future-ready charging performance.
Libra Features
Enclosure
Versatile & Flexible
Hardware and OCPP
platform agnostic*
Energy Optimisation
Real time load managment
Increased Charger Availability
More efficient charging sessions
Rapid Commissioning
Easy to use password
protected touch screen
Plug & Play
With major OCPP platforms**
Future Proof Installation
Reduce risk of exceeding your buildings maximum capacity
No Hidden Costs
No monthly recurring fees with 3 years 4G data included
| Category | Specifications & Features |
|---|---|
| Product Name | Libra Dynamic Load Balancer |
| Applications | Commercial / Semi-public / Public EV charging sites for dynamic load balancing and real-time data management |
| Model Options | 460-0120 → 24mm CT Clamp, 150A |
| 460-0400 → 36mm CT Clamp, 400A | |
| 460-0600 → 50mm CT Clamp, 600A | |
| 460-1000 → 110mm Rogowski Coil, 1000A | |
| Key Features | Dynamic Load Balancing (DLB) |
| Real-time power distribution | |
| Multi-charger OCPP integration | |
| Wi-Fi / 4G / RJ45 connectivity | |
| Optimized data upload threshold to reduce consumption | |
| Communication Protocol | OCPP 1.6 WebSocket |
| Network Options | 4G LTE / 2.4GHz Wi-Fi / RJ45 Ethernet / GPS |
| Display | 4.3” LCD touchscreen for live monitoring of voltage, current, and load status |
| Power Supply | Input: AC 100–240V |
| Enclosure | Powder-coated steel enclosure (industrial-grade) |
| Dimensions | 285mm × 285mm × 87mm |
| Operating Environment | Operating temperature: -25°C ~ +55°C |
| Humidity: 5%–95% (non-condensing) | |
| Altitude: ≤2000m | |
| Package Contents | Libra main unit ×1 |
| Wall mounting kit ×4 | |
| CT Clamps / Rogowski Coils ×3 | |
| Installation & Operation Manual | |
| Firmware Updates | Supports OTA remote updates |
| Warranty | 3-year manufacturer’s warranty including 4G data, technical support, and firmware upgrades |
