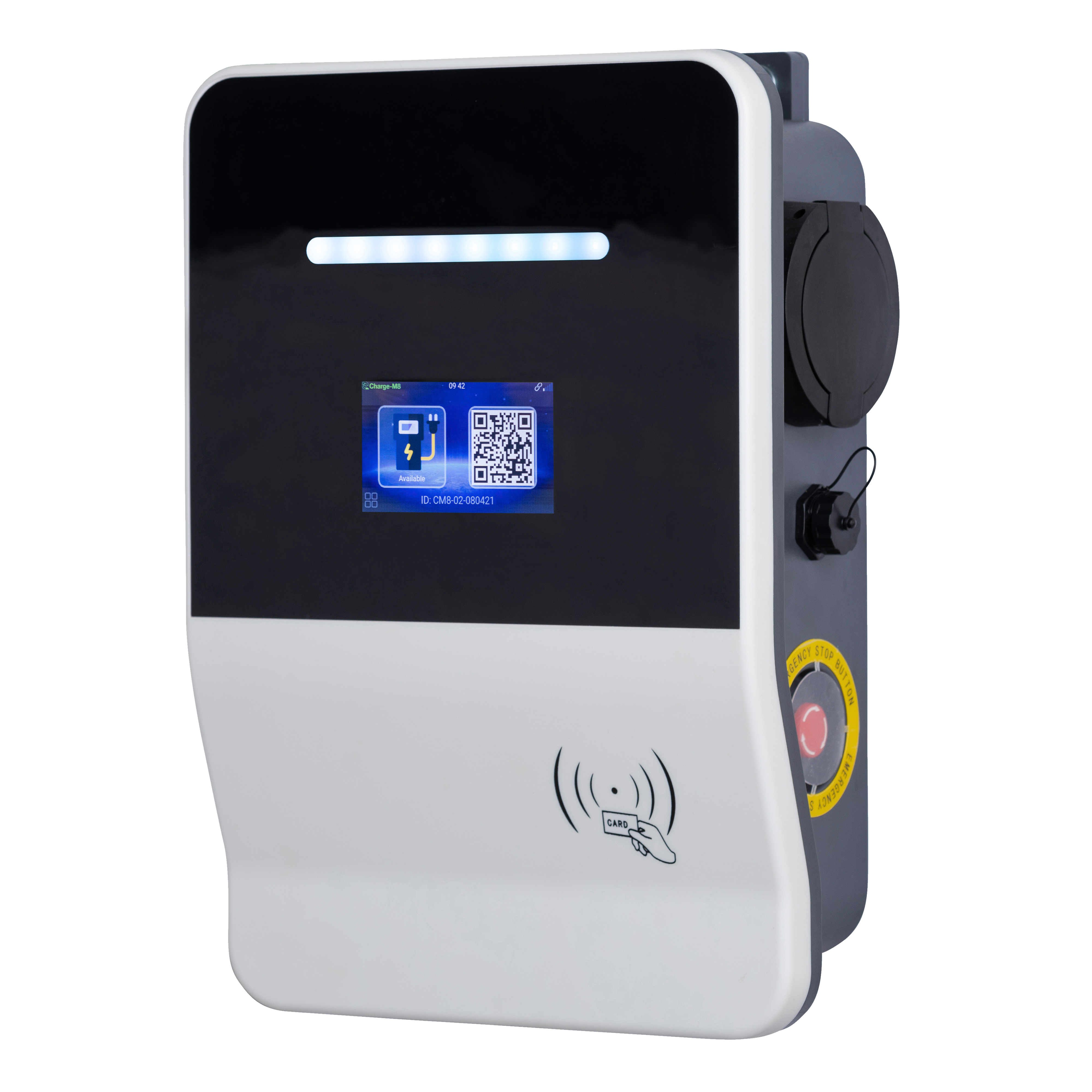

Delta 44kW Twin Charger – Twice the Power, One Installation

Powerful, efficient, and built for high-demand environments.

Dual Socket
Max output, minimal footprint
Commercial-Grade
Weatherproof and ready for round-the-clock use
44kW AC Charger
Ideal for fleet or public use

Charge Point Features

Status Indicator
BS EN 62196 Type 2 Socket
Touch Screen Display
Emergency Stop
RFID Reader
Strong Durable
ABS Enclosure
Delta Mobile Clean View
Operate in single or
3 phase mode

Socket output configurable
3 - 22kW

Smart Charging Point
Regulations Compliant

Operate in single or
3 phase mode

Quick on screen set up
No apps or SSID required

4.3" Touch screen
Easy to use interface

PEN fault sensing
built in

Optional smart operation
with RFID cards

Twin
Type 2 sockets

Technical Specifications

Rated Voltage230v/AC ±10% - 1Phase, 400v AC ±10% - 3Phase
Maximum Output22kW 32 A x 2
Operating Frequency50/60HZ
Screen4.3" Touch Screen
RFID CardISO 14443A, MIFARE DESFire EV1
Standby Power Consumption6W
Communication ModesWIFI / RJ45 / 2G, 3G, 4G / OCPP 1.6 / RFID / APP
IP Protection LevelIP65
Operating Temperature-25°c to 55°c
Energy MeterTwin EU MID Approved Energy meter
EMSEN6100-4-5 ±2KV/±4KV
EMICISPR22 / EN 55022 Class B
StandardsCE - EN61851-1 BS EN 62196 Mode3
Dimensions and Weight350w x 180d x 500h (mm)    12KG
Delta Twin - Manual Download
Download PDF
